Description
Overview

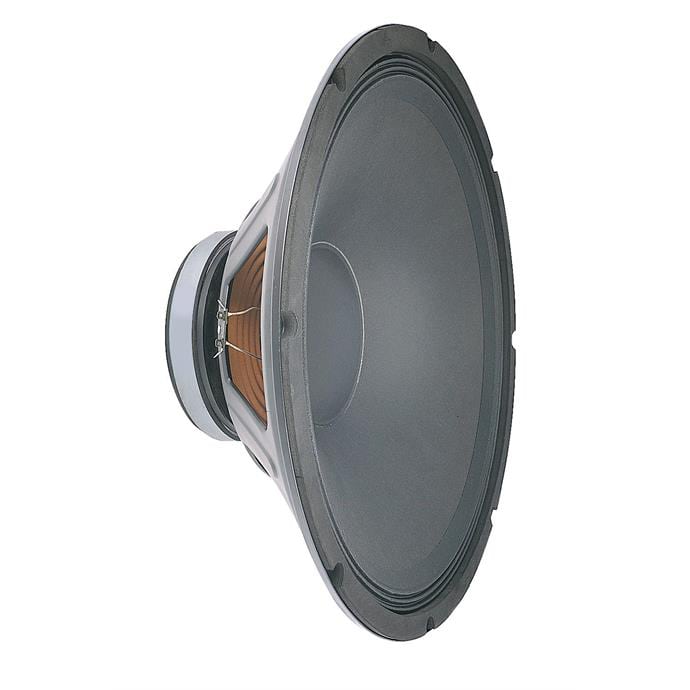

PRO 18″ WOOFER
Features
| 18″ |
| Revc (ohms) 6.30 |
| Sd (Square Meters) 0.126 |
| BL (T/M) 25.10 |
| Znom (ohms) 8 |
| Vas (liters) 365.1 |
| Cms (uM/N) 117.9 |
| Mms (gm) 239.01 |
| Qms 9.29 |
| Qes 0.391 |
| Net weight lb. / kg: 14.6 lbs. / 6.6 kg |
| Qts 0.375 |
| Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener |
| Xmax (mm) 3.5 |
| Voice coil diameter: 3″ / 76.2 mm |
| Le (mH) 1.96 |
| Cone: Kevlar® impregnated cellulose |
| SPL (1W 1m) 94.5 |
| Usable freq. range: 40 Hz ~ 1.5 kHz |
| No (%) 2.60 |
| Sensitivity: 94 dB / 1 W 1 m |
| Vd (cu. in. / ml) 54/882 |
| Power capacity: 800 W Peak 400 W Program 200 W Continuous |
| Pmax (Watts pgm.) 400 |
| Impedance: 8 Ohms |
| Disp (cu. in. / ml) 202/3310 |
| Fo (Hz) 28.8 |
| Weight Unpacked: 15.87 lb(7.2 kg) |
| Weight Packed: 20.28 lb(9.2 kg) |
| Width Packed: 19.125″(48.5775 cm) |
| Height Packed: 20″(50.8 cm) |
| Depth Packed: 9.25″(23.495 cm) |
